Konfigurasi Wireless Point To Multi Point Di Mikrotik
Assalamualaikum Warahmatullahi Wabarakatuh
Kali ini saya akan membahas tentang Wireless Point to Multi Point, pada pembahasan kali ini saya melanjutkan dari materi sebelumnya yaitu Point To Point, apakah Wireless Point to Multi Point itu ?
Point To Multi Point sama seperti Point To Point, yang membedakan hanyalah Point To Point hanya untuk 1 client yang dapat berinterkasi sedangakan Point To Multi Pont ini bisa lebih dari satu
Router 1 = Mode = AP-Bridge
= Band = 2,4 Ghz b/g/n
= SSID = Kelompok 11 PTMP
IP Address = eth2 (client) = 172.16.31.1/24
= wlan1 (wireless) = 12.12.12.1/24
Router 2 = Mode = Station
= Band = 2,4 Ghz b/g/n
= SSID = Kelompok 11 PTMP
IP Address = eth2 (client) = 192.168.32.1/24
= wlan1 (wireless) = 12.12.12.2/24
Router 3 = Mode = Station
= Band = 2,4 Ghz b/g/n
= SSID = Kelompok 11 PTMP
IP Address = eth2 (client) = 33.33.33.1/24
= wlan1 (wireless) = 12.12.12.3/24
Ok langsung saja ke konfogurasinya, untuk konfigurasinya tidak jauh berbeda dengan Point To Point hanya saja untuk mode pada bridge menjadi AP-Bridge, dn untuk setting IP sesuai dengan keteranga diatas
Sisi AP-Bridge =
- Setting Wlan1 seperti diatas, setelah itu lihat apakah sudah ada indikator R (Running) yang artinya sudah bekerja
- Setelah itu kita setting pada IP Routeya agar bisa terhubung dengan client station, masukkan ip router staton 1 dan station 2 pada gateway
Sisi Station 1 =
- Settingan sama pada saat Point To Point, yaitu aktifkan interace wlan1, lalu kita scan SSID AP-Bridge
- Selanjutnya kita setting IP Routenya sama seperti pada AP-Bridge yaitu agar saling terhubung, kita masukkan ip router AP-Bridge dan Station 2 pada gateway
Sisi Station 2 =
- Sama saja settingannya seperti di station 1
- Setting pada IP Routenya, Masukkan IP AP-Bridge dan Station 1 pada gateway
Dan Sekarang adalah pengujian apakah sudah terhubung
- Pada menu Registration pada sisi AP-Bridge, station 1, dan station 2
- Yang kedua yaitu bandwidth Test pada AP-Bridge ke router station1 dan station 2

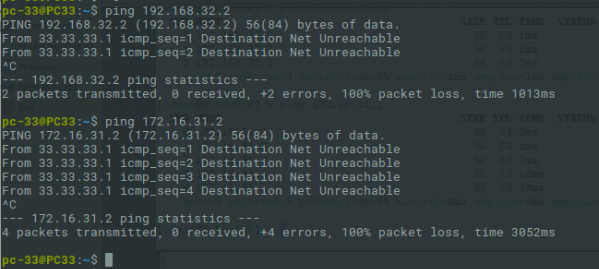

- Tes Ping dari setiap router dan setiap client
- AP-Bridge
- Client AP-Bridge
- Station1
- Client Station 1
- Station 2
- Client Station 2
Eksperimen = Perubahan Band
- AP-Bridge = B
- Station = B
- AP-Bridge = B
- Station = Only G
- AP-Bridge = B
- Station = B/G
- AP-Bridge = B
- Station = Only N
- AP-Bridge = B
- Station = B/G/N
- AP-Bridge = B
- Station = G/N
- AP-Bridge = Only G
- Station = B
- AP-Bridge = Only G
- Station = Only G
- AP-Bridge = Only G
- Station = B/G
- AP-Bridge = Only G
- Station = Only N
- AP-Bridge = Only G
- Station = B/G/N
- AP-Bridge = Only G
- Station = G/N
- AP-Bridge = B/G
- Station = B
- AP-Bridge = B/G
- Station = Only G
- AP-Bridge = B/G
- Station = B/G
- AP-Bridge = B/G
- Station = Only N
- AP-Bridge = B/G
- Station = B/G/N
- AP-Bridge = B/G
- Station = G/N
- AP-Bridge = Only N
- Station = B
- AP-Bridge = Only N
- Station = Only G
- AP-Bridge = Only N
- Station = B/G
- AP-Bridge = Only N
- Station = Only N
- AP-Bridge = Only N
- Station = B/G/N
- AP-Bridge = Only N
- Station = G/N
- AP-Bridge = B/G/N
- Station = B
- AP-Bridge = B/G/N
- Station = Only G
- AP-Bridge = B/G/N
- Station = B/G
- AP-Bridge = B/G/N
- Station = Only N
- AP-Bridge = B/G/N
- Station = B/G/N
- AP-Bridge = B/G/N
- Station = G/N
- AP-Bridge = G/N
- Station = B
- AP-Bridge = G/N
- Station = Only G
- AP-Bridge = G/N
- Station = B/G
- AP-Bridge = G/N
- Station = Only N
- AP-Bridge = G/N
- Station = B/G/N
- AP-Bridge = G/N
- Station = G/N
Ok sekian untuk postingan kali ini
Wassalamualaikum Warahmatullahi Wabarakatuh
